ST 2110, redefined.
Turnkey by design.

A complete AV routing system — media servers, switches, converters, PTP grandmaster, and control software — configured for your venue and supported by the team that built it.

REQUEST A QUOTE → BOOK AN IN-PERSON DEMO

A complete system.
From $25,000.

A traditional small ST 2110 system — switch, control software, NMOS controller, PTP grandmaster, integration — typically runs $90K–$230K. A Transmission system, hardware and software bundled, starts at $25,000.

Traditional Lawo / Evertz / Arista-class deployment

  • Switch fabric

    $35K – $60K

    Arista 7280SR3-48YC8 or equiv.

  • Control software + license

    $25K – $80K

    Lawo VSM / Evertz MAGNUM

  • NMOS controller

    $10K – $30K

    Often separate vendor

  • PTP grandmaster

    $5K – $15K

    Meinberg / Tektronix

  • System integration

    $15K – $45K

    Third-party SI

TOTAL $90K – $230K
Transmission Hardware + software, built to order

  • Switch fabric

    $2,200

    MikroTik CRS520-4XS-16XQ

  • Converters

    $8K – $24K

    8× Blackmagic BiDirect 12G SFP

  • Optics + patch cables

    $4K – $10K

    Broadcast-grade SFP28 / QSFP28 + LC

  • PTP grandmaster

    $2K – $5K

    Tridant PTP server · mini PC

  • Build + integration

    $7K – $14K

    Pre-shipment configuration + on-site assist

  • Project mgmt + 1yr warranty

    $2K – $5K

    Onboarding · support · hardware replacement

  • Control plane

    Year 1 included

    Transmission · then $499/mo

FROM $25,000

Both columns exclude on-site commissioning, travel, and structured cabling beyond the rack — quoted separately based on venue location and integrator scope.

Ranges based on publicly listed integrator deployments and our own bill of materials. Your build will vary — request a quote for your venue.

Three things,
done well.

The Transmission control plane is built around three surfaces — device discovery, signal routing, real-time monitoring. Each lives on a single web page, mobile-responsive, push-updated over WebSocket. No CLI. No proprietary terminals.

Discover

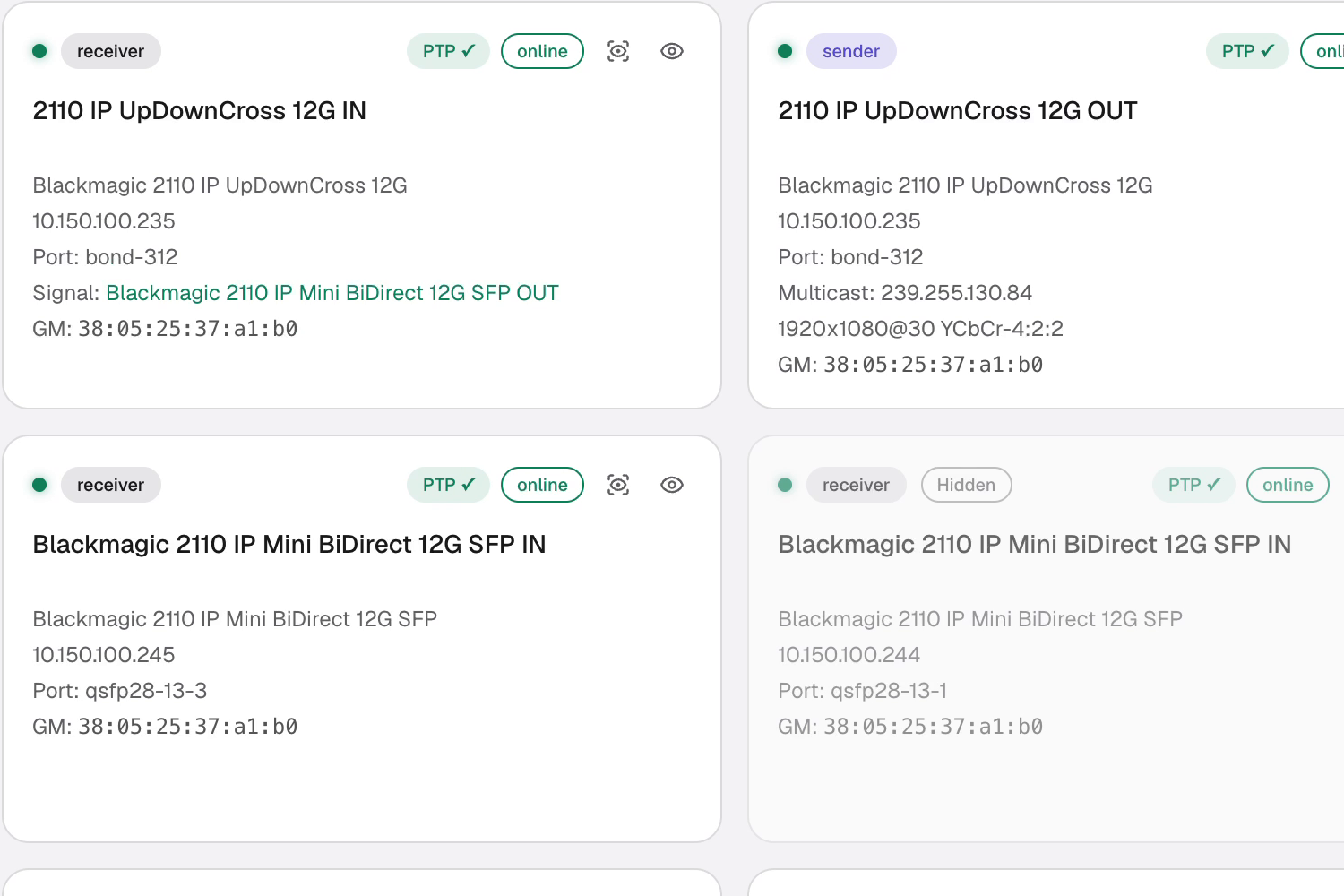

NMOS IS-04 over a hosted registry. Devices appear the moment they register — IP, MAC, switch port, video format, multicast group, PTP lock, all mapped automatically.

Route

One click. IS-05 stage and activate, MDB verification, take history. Confirm-before-take by default. Salvos for synchronized multi-route execution.

Monitor

Sub-second port stats. Bandwidth, drop counts, FCS errors, SFP optical power. PTP consistency and switch invariants swept continuously, pushed over WebSocket.

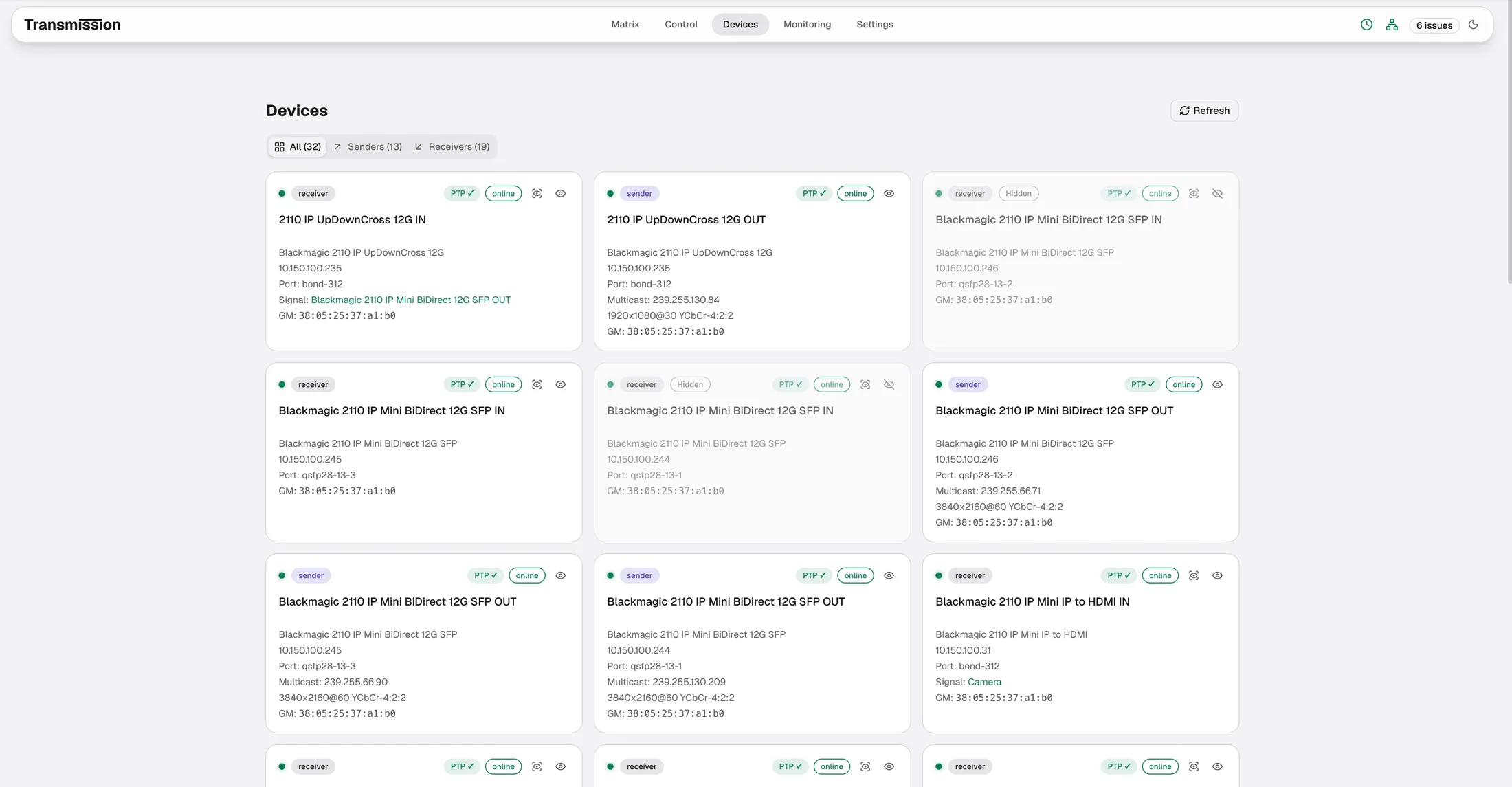

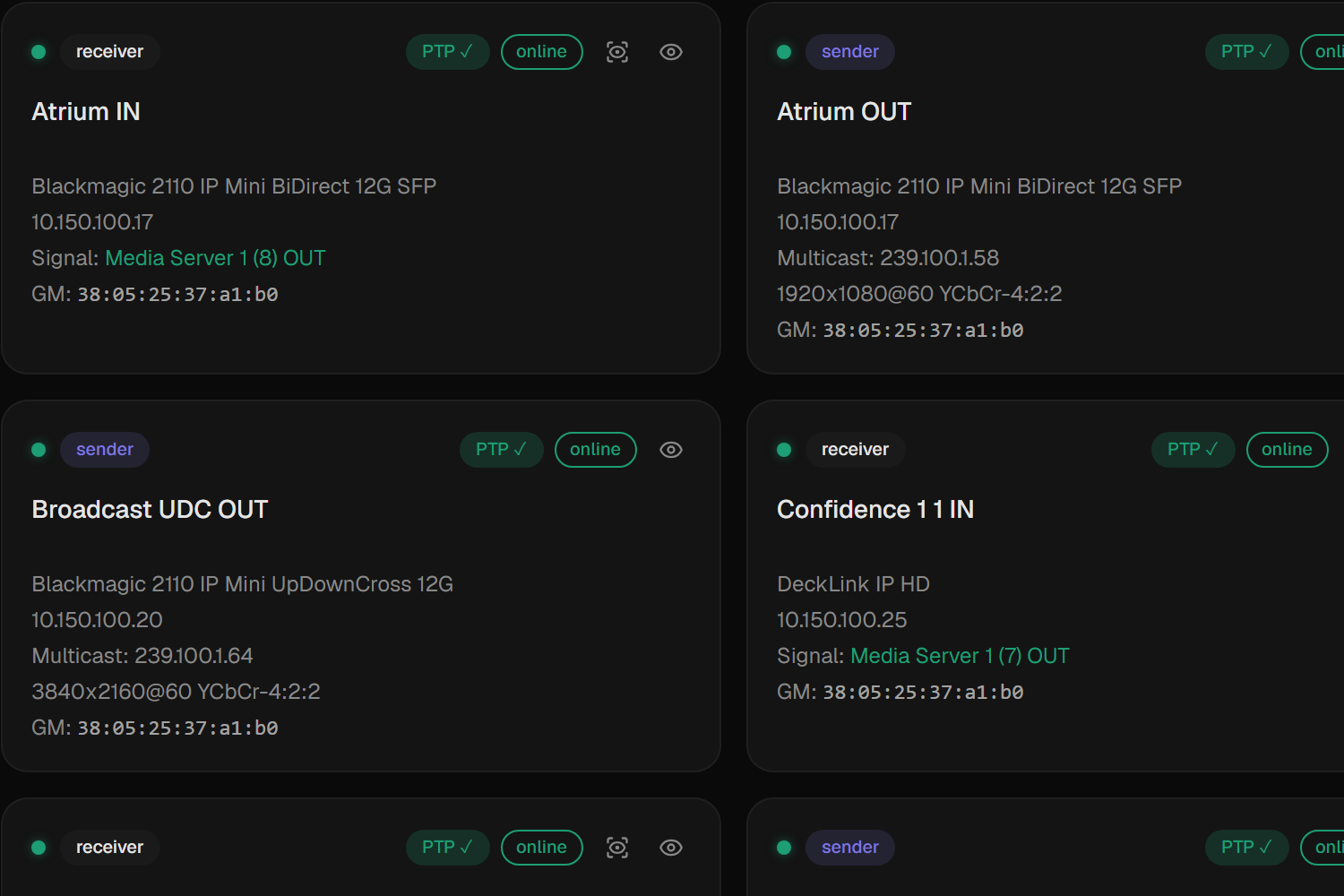

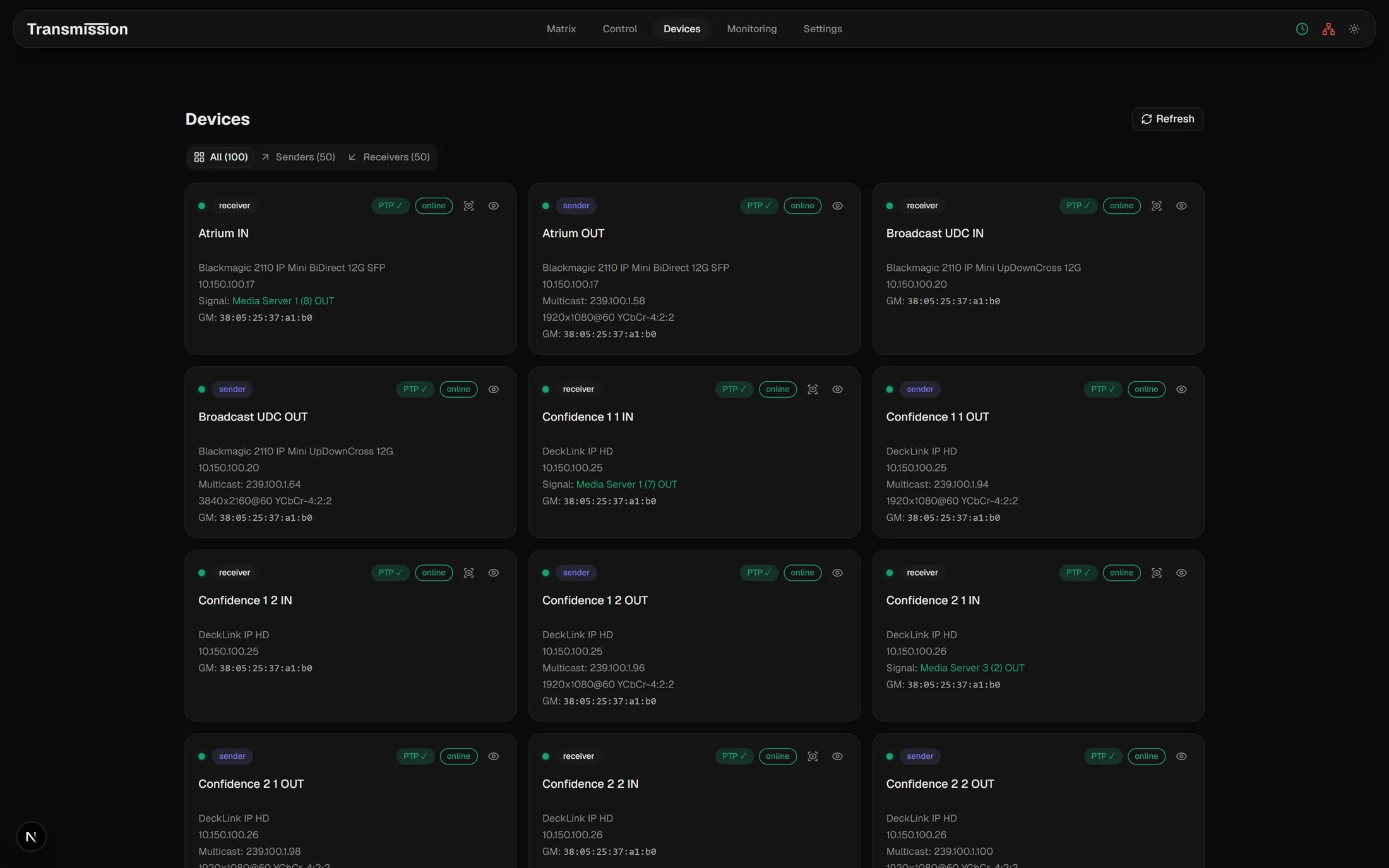

Transmission device list showing Blackmagic 2110 IP Mini and DeckLink IP cards with IP address, multicast group, video format and PTP lock state on each card.Transmission device list showing Blackmagic 2110 IP UpDownCross and 2110 IP Mini BiDirect cards with IP address, switch port, multicast group, video format and PTP lock state on each card.

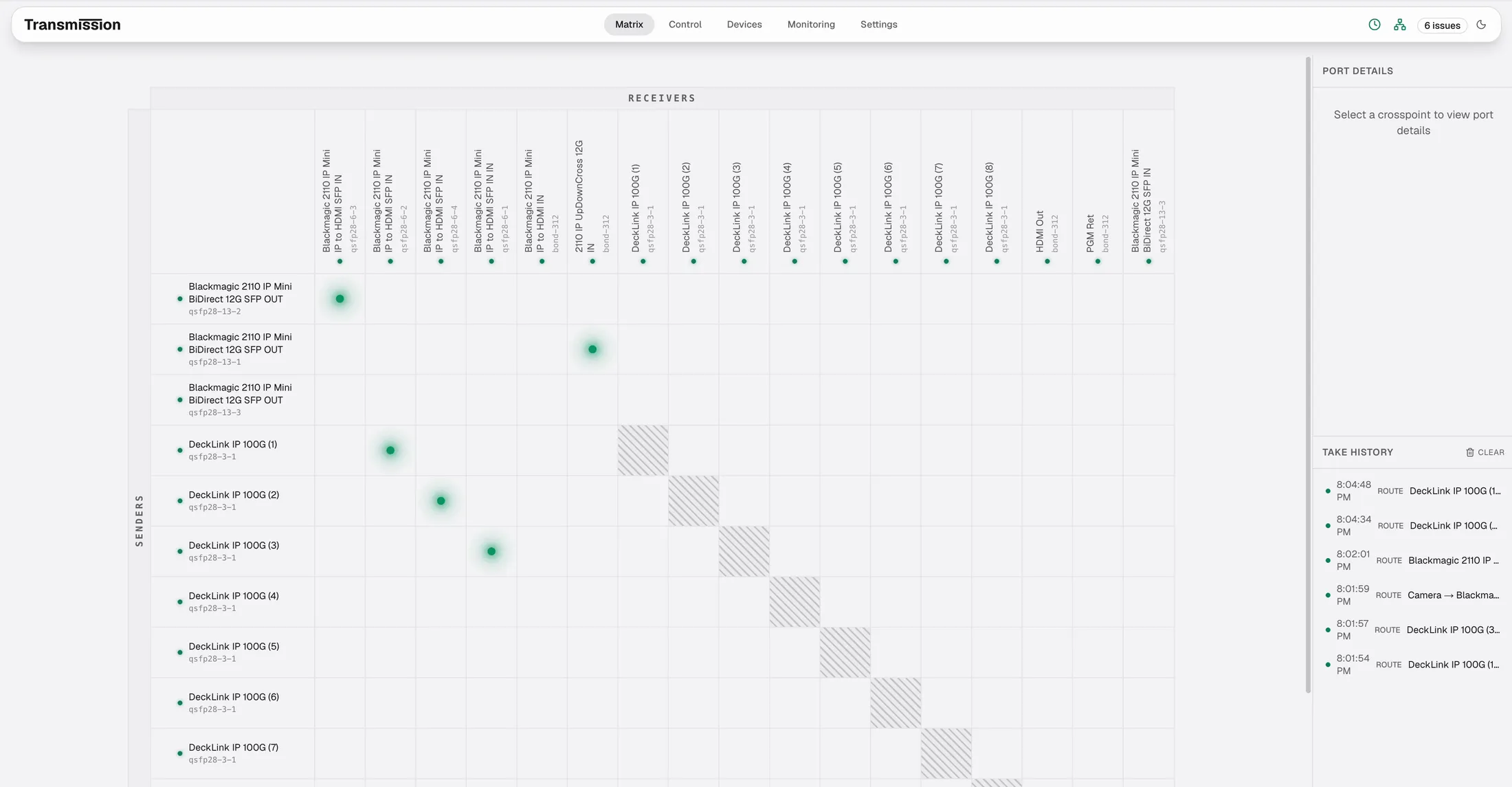

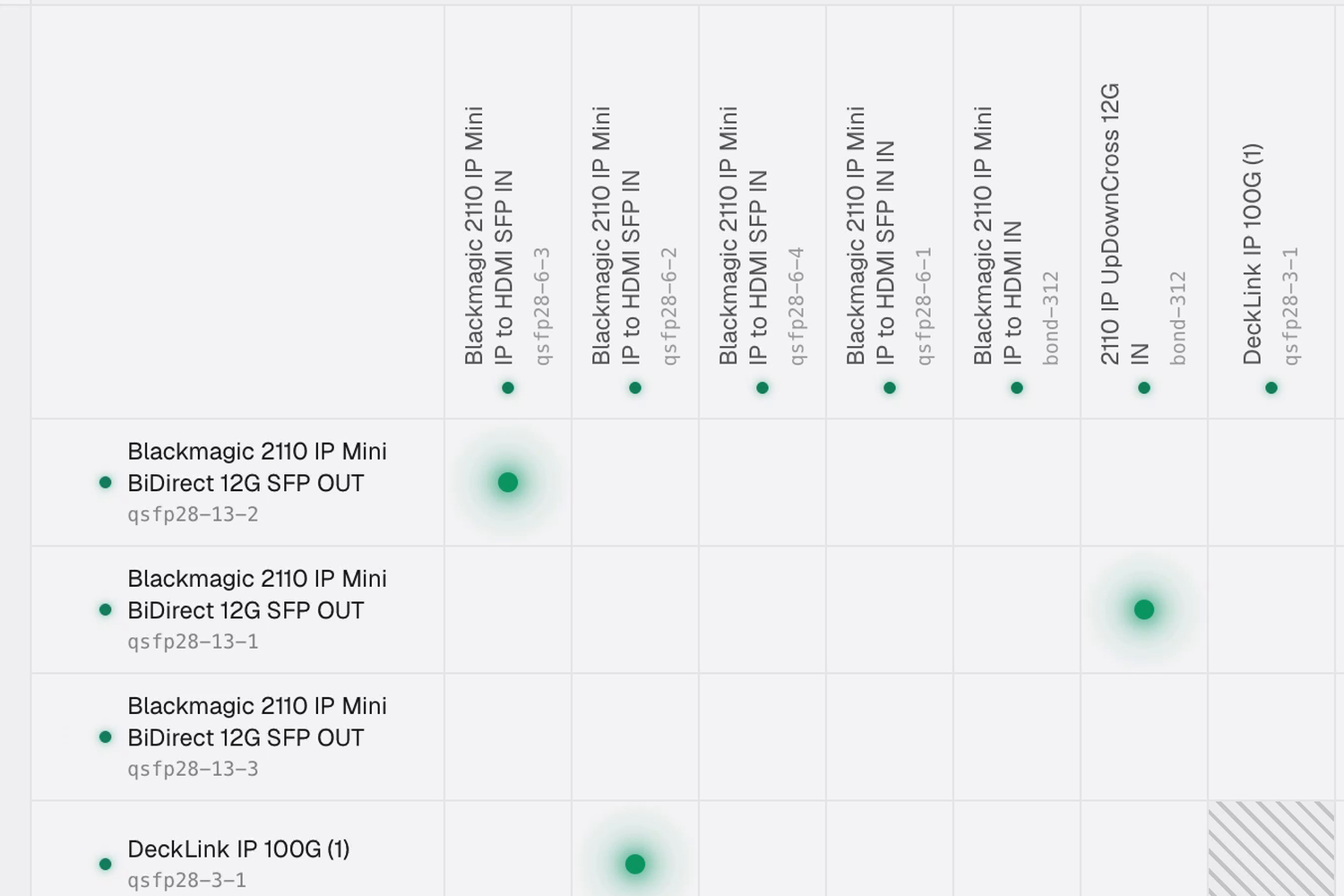

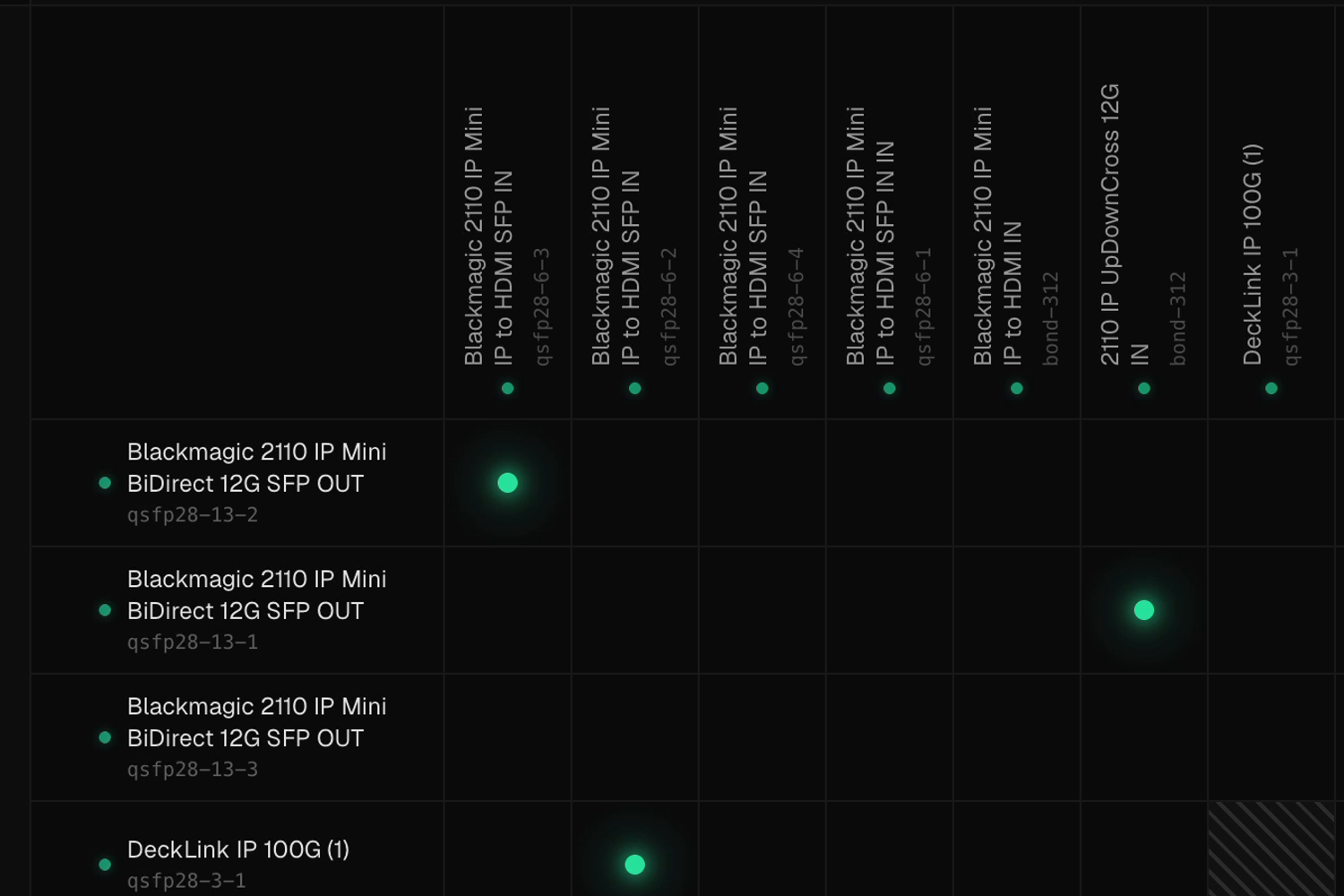

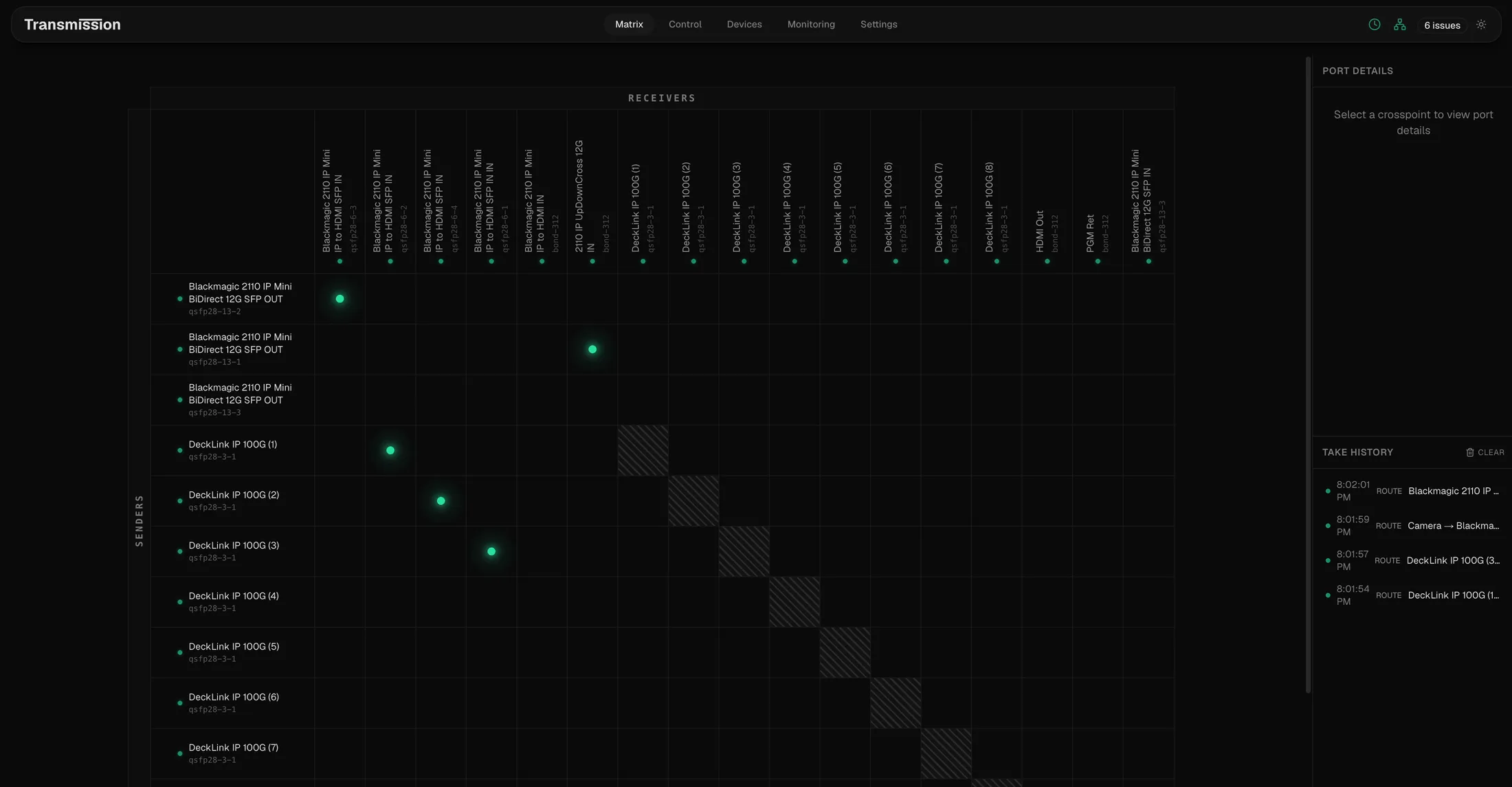

Transmission crosspoint matrix with senders down the left and receivers across the top, active routes marked by green crosspoints.Transmission crosspoint matrix with Blackmagic 2110 IP Mini and DeckLink IP 100G senders down the left and receivers across the top, active routes marked by green crosspoints.

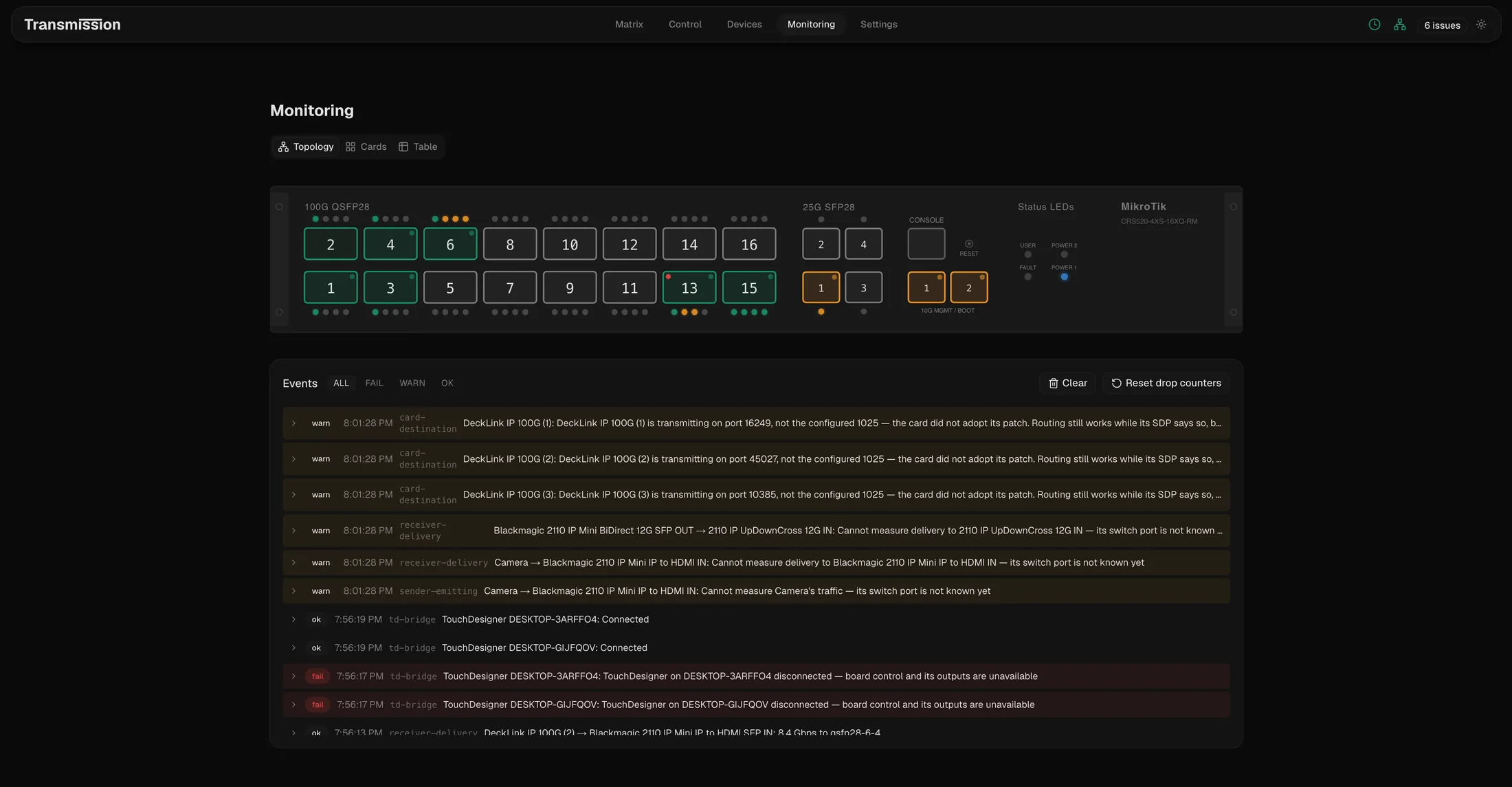

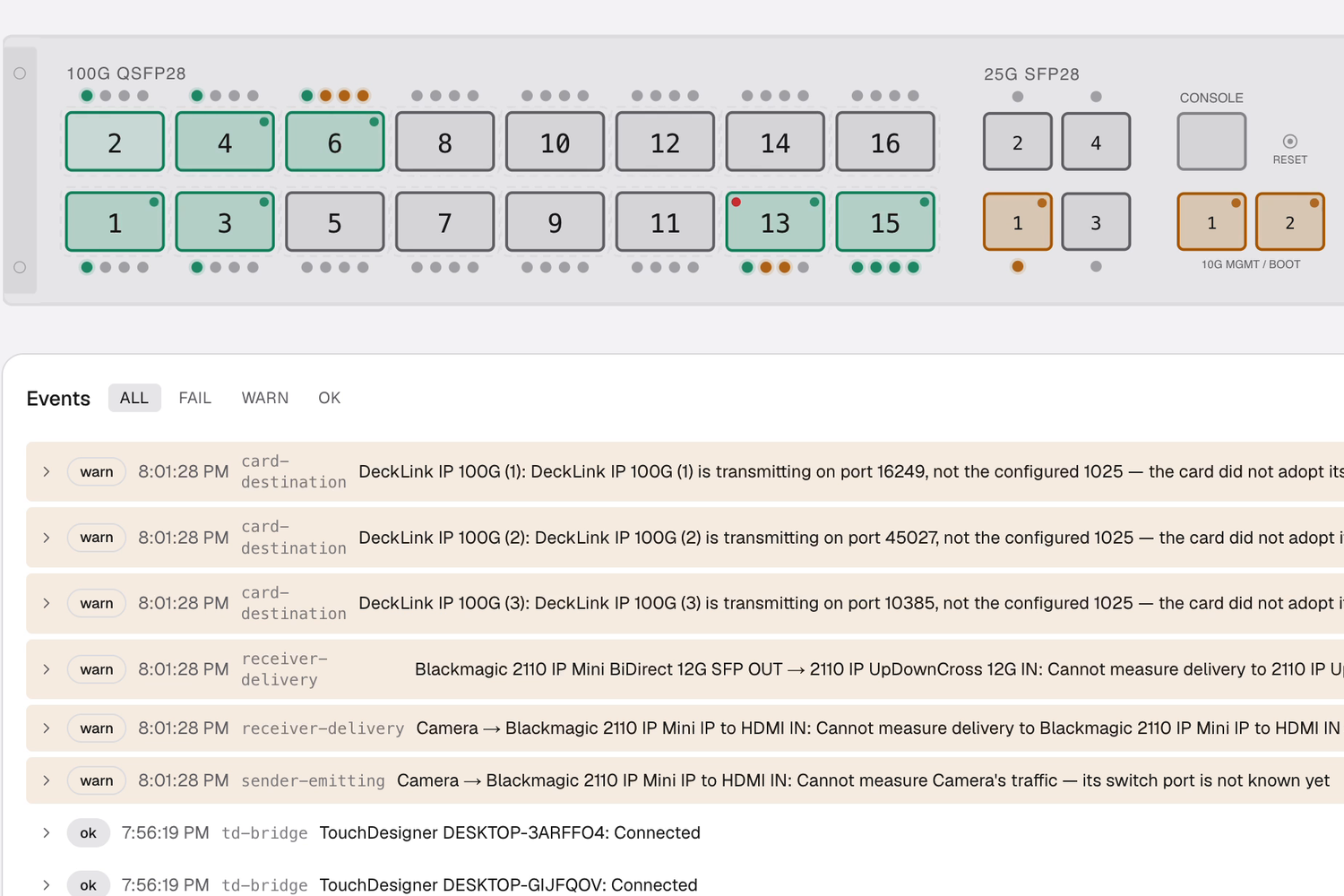

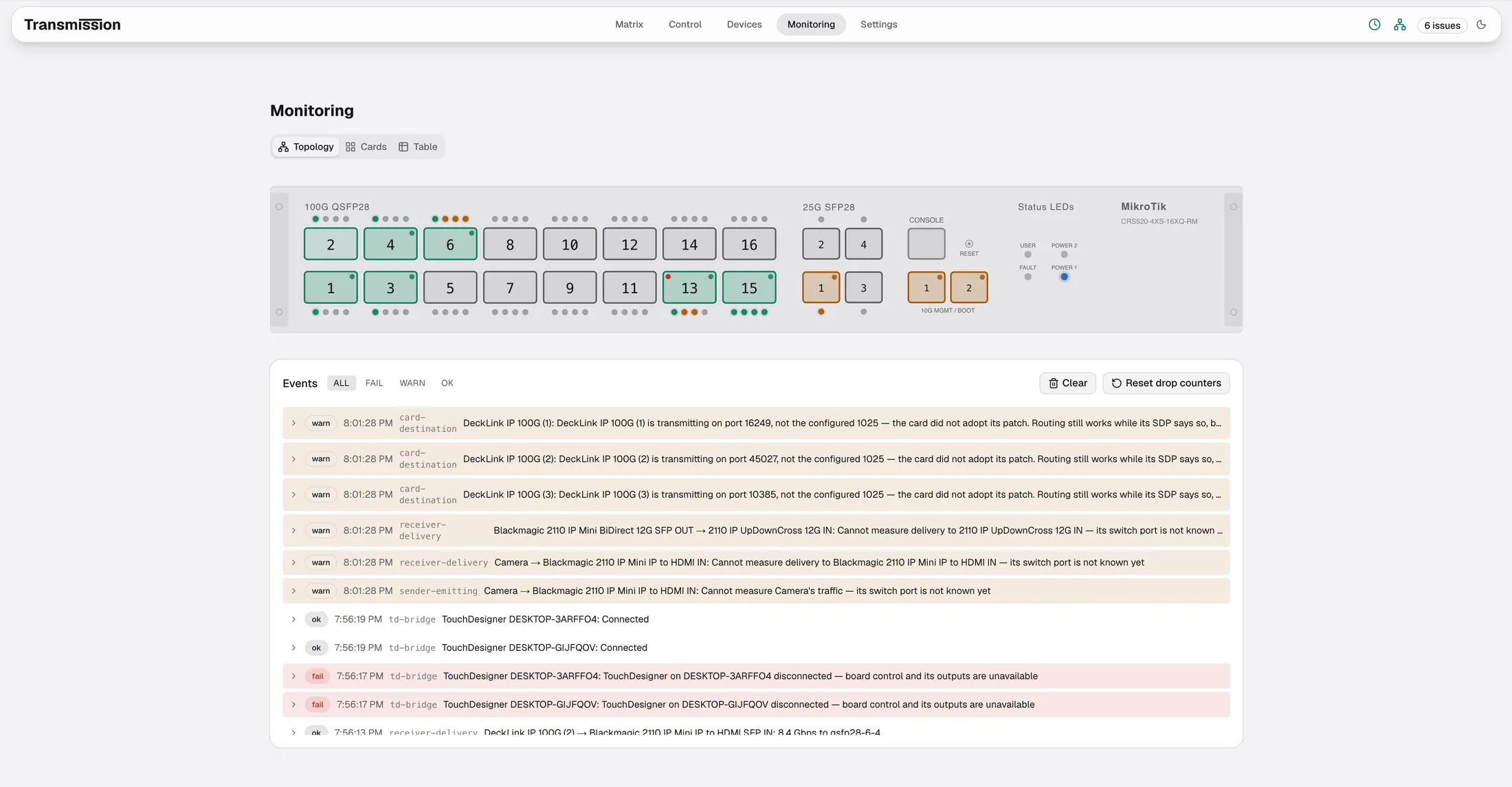

Transmission monitoring view rendering the MikroTik CRS520-4XS-16XQ front panel with its 100G QSFP28 and 25G SFP28 ports, above the health event log.Transmission monitoring view rendering the MikroTik CRS520-4XS-16XQ front panel with per-port link state on its 100G QSFP28 and 25G SFP28 ports, above the health event log.

Commodity 100GbE.
Broadcast-grade routing.

Built around the MikroTik CRS520-4XS-16XQ (16× QSFP28 100G + 4× SFP28 25G) and the Blackmagic 2110 IP Mini family. RouterOS 7.x is configured automatically — bridge, IGMP snooping, flow control, MTU 9000, port speeds, breakout — through the app. No CLI.

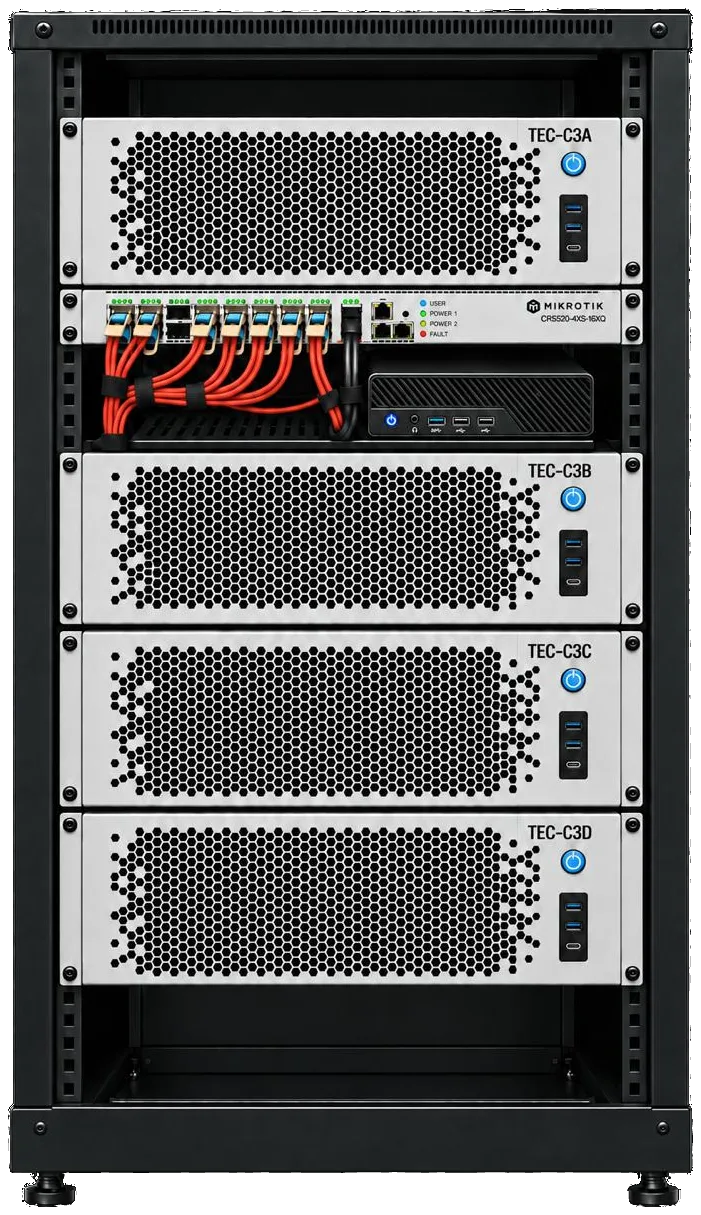

Reference rack 5RU · small system
MikroTik CRS520-4XS-16XQ Switch fabric
16× 100G QSFP28 · 4× 25G SFP28 · 2× 10G RJ45
TEC-C3 video server Video server
BMD DeckLink 100G capture & playout · ST 2110 · 4K UHD
TM1 controller Timing + control
Transmission control plane · IEEE 1588v2 PTP grandmaster · 1U

*Reference layout. Real builds vary by source/destination count, redundancy, and venue topology.

Switch

MikroTik CRS520-4XS-16XQ-RM

Model
CRS520-4XS-16XQ-RM
QSFP28 ports
16 × 100GbE
SFP28 ports
4 × 25GbE
Ethernet ports
2 × 10GbE RJ45
Switching capacity
3.4 Tbps non-blocking
Forwarding
Marvell Prestera DX
OS
RouterOS 7.x
MTU
9000 (jumbo)
Form factor
1U · dual PSU
Controller

TM1 controller · Transmission stack

Model
TM1 controller · 1U
Compute
ARM64 · 8GB · NVMe SSD
Timing
IEEE 1588v2 PTP grandmaster
Network
Gigabit Ethernet to switch mgmt
OS
Debian 12 · .deb appliance
Backend
NestJS 11 · TypeScript strict
Database
SQLite · Prisma (self-contained)
Frontend
Next.js 16 · React 19
Real-time
Socket.IO · RouterOS API listen
Remote access
WireGuard hub enrollment

And we build
the source.

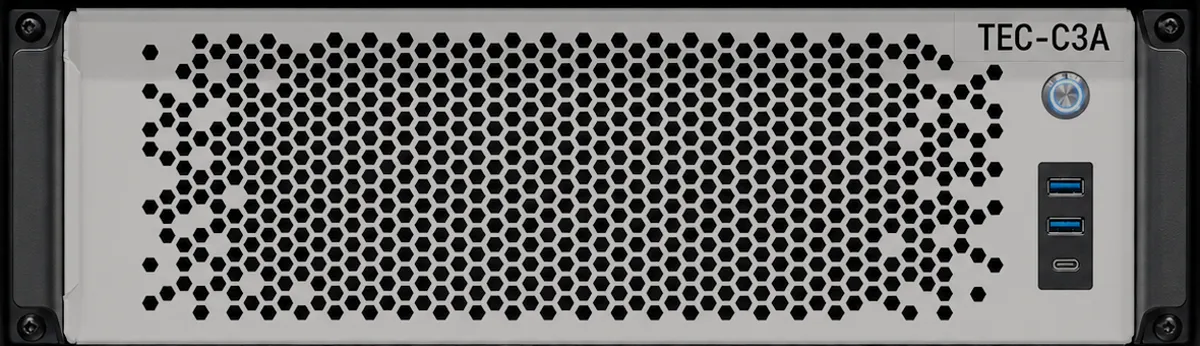

TEC-C3A media server — 3U chassis, front panel.

3U rack-mounted media servers with NVIDIA RTX PRO graphics — up to 8× 4K ST 2110 outputs per chassis, PTP-locked to your routing fabric. Permanent installations, projection mapping, video walls, digital art galleries, experience centers.

Reference build

8 × 4K

ST 2110-20/22 outputs, per chassis. PTP-locked. Synchronized to your routing fabric.

Use cases

  • Permanent installations
  • Projection mapping
  • Video walls
  • Digital art galleries
  • Experience centers

Configuration

Reference platform · scales with your output count

Form factor
3U rack-mounted
ST 2110 outputs
Up to 8× 4K @ 60fps
GPU
NVIDIA RTX PRO 6000
Output stack
Moonshine · Constellation
Networking
1 · 10 · 100 GbE
CPU
AMD Ryzen
Memory
128 GB DDR5 ECC
Storage
4 TB NVMe
OS
Windows

*Reference configuration. Output count, GPU model, and CPU sized to your workload — quoted per build.

The playout system,
on the same matrix.

Constellation is our TouchDesigner-based playout software for multi-machine media servers — artworks, playlists, canvases and output mapping across a render cluster. Transmission integrates with it directly: a Constellation output becomes a routable sender the moment a route uses it, and any sender on the fabric can be routed back in as a Constellation source. Program audio follows the picture.

Playout
TouchDesigner, multi-machine cluster
Outputs
ST 2110 · SDI · NDI
Sync
PTP-locked to the routing fabric
Control
One matrix drives both

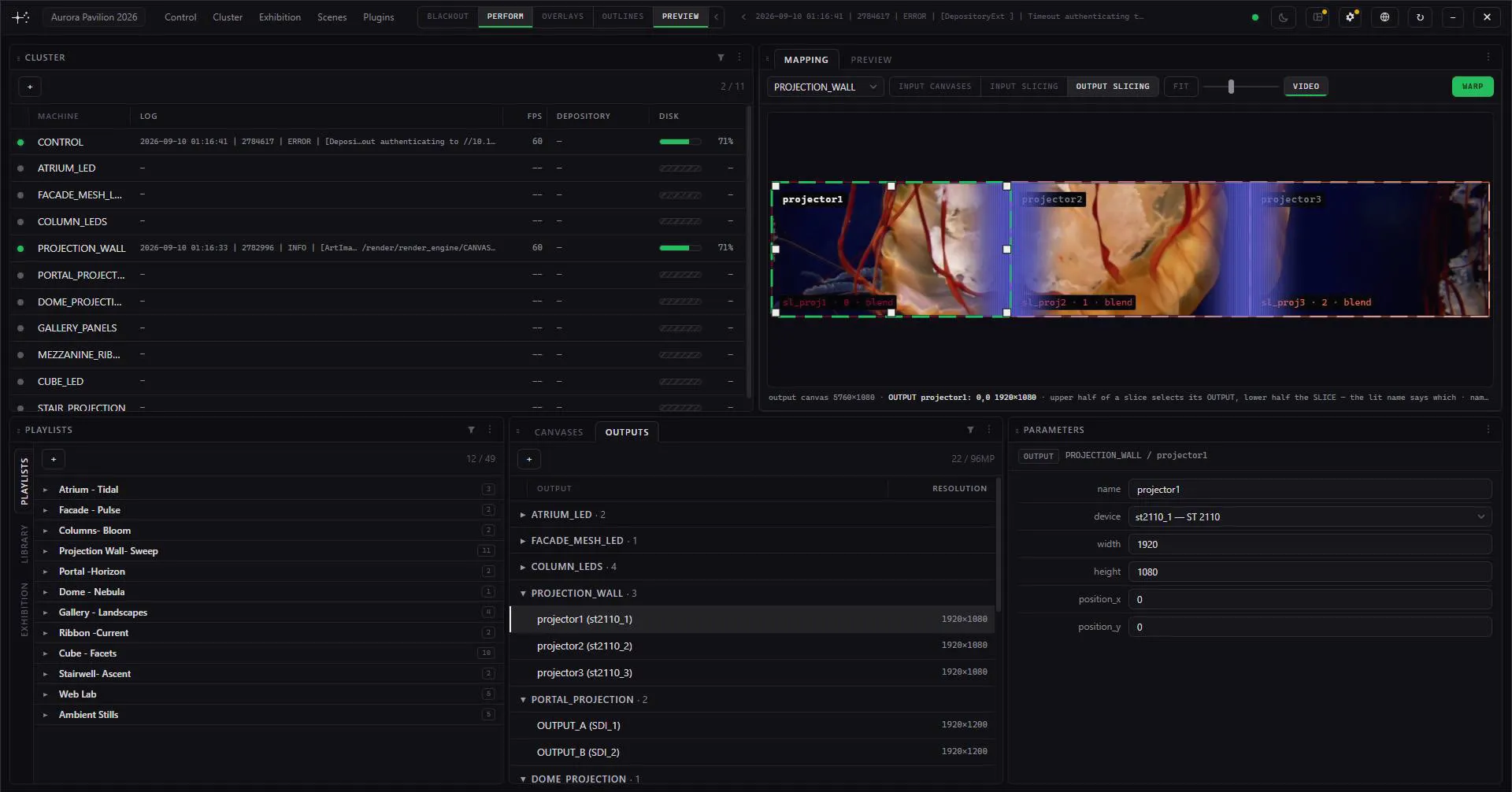

The Constellation interface — an eleven-machine render cluster, three blended projector slices over live content, and an outputs list where each projector is an ST 2110 sender (st2110_1, st2110_2, st2110_3).

Route a signal.
See it land.

Running on its own. ClickTap any crosspoint to take over — the take stages, activates, and settles, the same path the product runs against a real switch.

Receivers
Senders
Wall Playout 1qsfp28-4-2
Wall Playout 2qsfp28-4-3
Dome Playout 1qsfp28-15-2
Confidence 1 1sfp28-1
Confidence 1 2sfp28-2
Broadcast UDCqsfp28-9-3
Media Server 1 (1)qsfp28-1-1
Media Server 1 (2)qsfp28-1-2
Stage Lqsfp28-2-1
Stage Rqsfp28-3-2
Upstage UDCqsfp28-7-4
Studio A 1qsfp28-12-1
take log · awaiting first take
↑↓←→ navigate ⏎ confirm esc cancel

Spec'd for your venue.
Not a SKU.

Every Transmission system is built to your source and destination counts, redundancy requirements, and venue topology. Tell us what you need to route — we'll specify the switch, converters, PTP architecture, cable plant, and controller. We deliver it racked, configured, and tested.

Small

5RU · single fabric

MikroTik CRS520-4XS-16XQ TM1 TEC-C3
Sources

8

Destinations

8

PTP

Single grandmaster

IEEE 1588v2 · in TM1

Redundancy

—

Switch

MikroTik CRS520-4XS-16XQ

1× chassis · 1U

Controller

TM1 controller

PTP grandmaster · 1U

Video server

TEC-C3 video server

BMD DeckLink 100G · 3U

Mid

5RU · single fabric

MikroTik CRS520-4XS-16XQ TM1 TEC-C3
Sources

24

Destinations

24

PTP

Single grandmaster

IEEE 1588v2 · in TM1

Redundancy

SMPTE 2022-7

Optional

Switch

MikroTik CRS520-4XS-16XQ

1× chassis · 1U

Controller

TM1 controller

PTP grandmaster · 1U

Video server

TEC-C3 video server

BMD DeckLink 100G · 3U

Large

10RU · dual fabric

MikroTik CRS520-4XS-16XQ TM1 TEC-C3 A MikroTik CRS520-4XS-16XQ TM1 TEC-C3 B
Sources

64

Destinations

48

PTP

Dual grandmaster

Redundant PTP · in TM1

Redundancy

SMPTE 2022-7

Included

Switch

MikroTik CRS520-4XS-16XQ

2× chassis · 2U

Controller

TM1 controller

Failover pair · 2U

Video server

TEC-C3 video server

2× · DeckLink 100G · 6U

Open standards.
No proprietary layer.

Transmission is built on AMWA NMOS IS-04 (discovery) and IS-05 (connection management) over a PTP IEEE-1588v2 timing domain. SMPTE 2022-7 redundancy is supported on dual-fabric builds. Multicast routing uses IGMP snooping with multicast querier on the bridge.

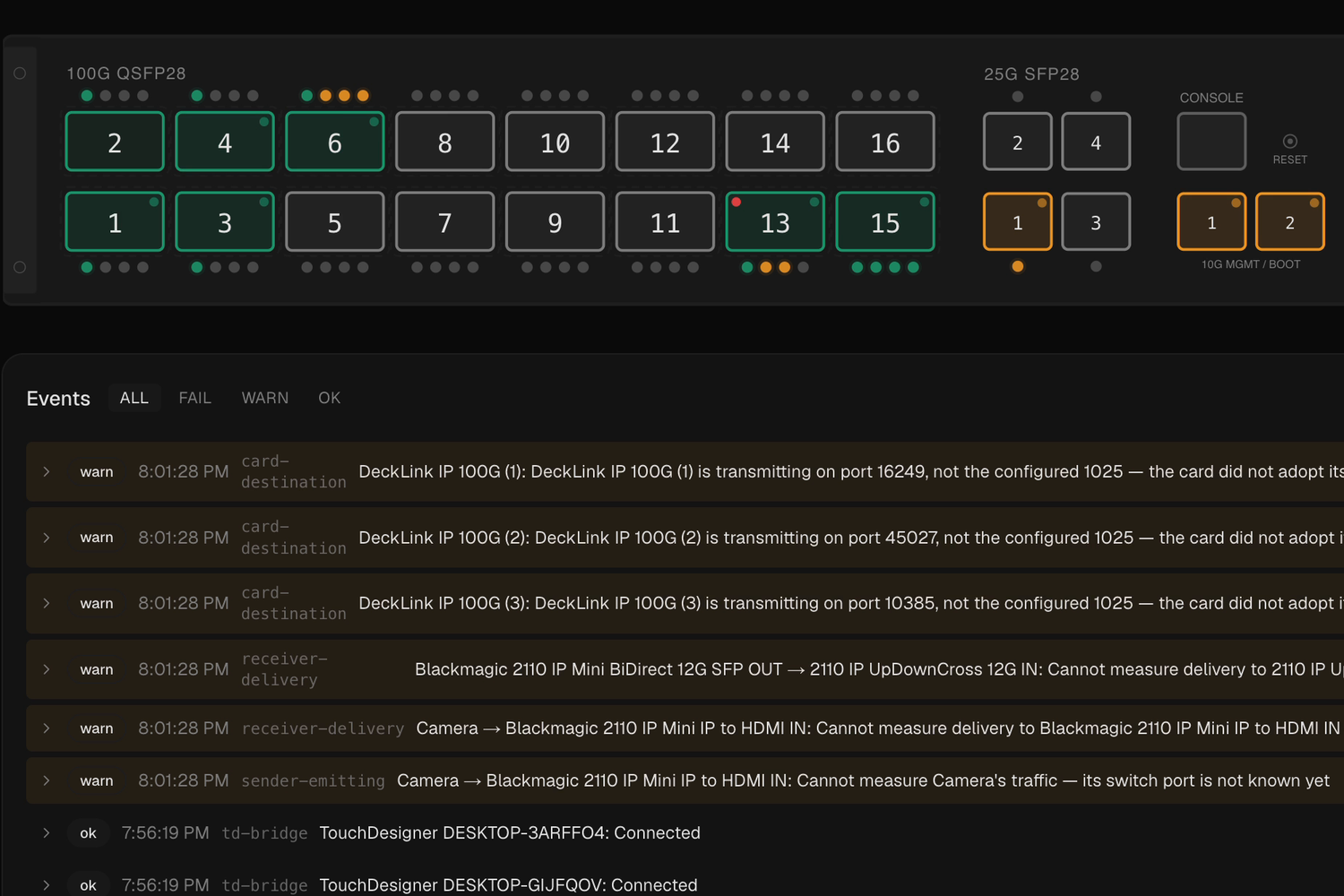

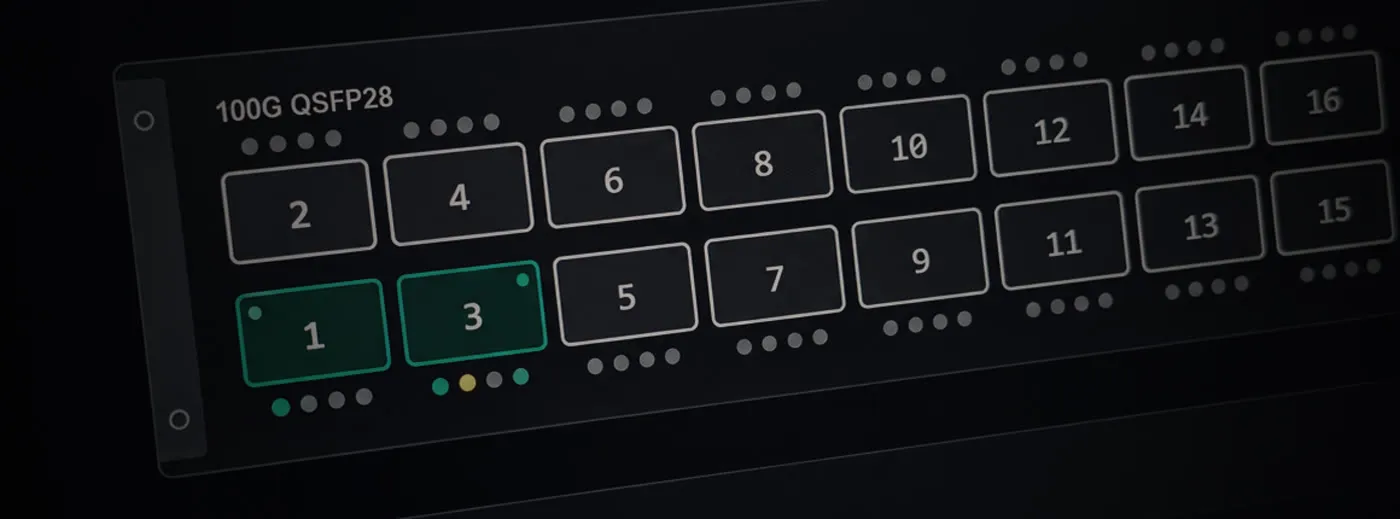

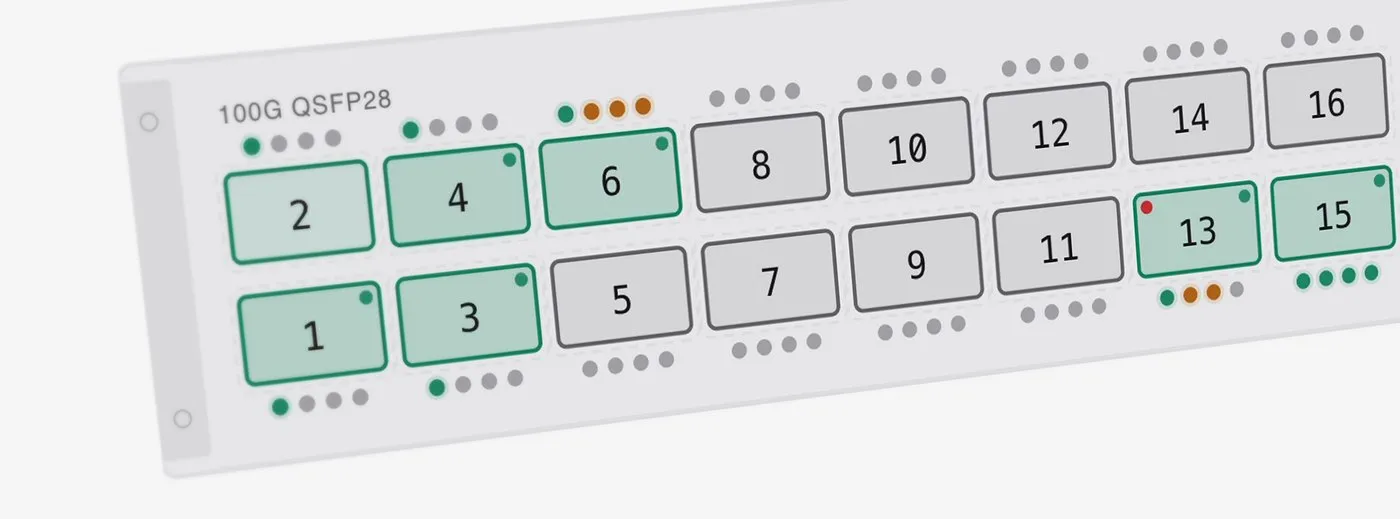

The MikroTik CRS520-4XS-16XQ front panel in Transmission's monitoring view — sixteen 100G QSFP28 ports with per-port link state.The MikroTik CRS520-4XS-16XQ front panel in Transmission's monitoring view — sixteen 100G QSFP28 ports with per-port link state.

DISCOVERY

Devices, mapped on appearance
  • IS-04 v1.3
  • _nmos-node._tcp mDNS browse
  • < 30s discovery latency
  • IP · MAC · port · format · group auto-mapped per device

CONTROL

Stage, activate, verify
  • IS-05 v1.1
  • activate_immediate activation mode
  • < 500ms MDB verification round-trip
  • Confirm-before-take default
  • Salvos synchronized multi-route execution

TIMING

PTP and redundancy
  • PTPv2 IEEE-1588-2008
  • Domain configurable
  • Hardware grandmaster IEEE-1588-2008
  • Per-device lock status pushed via WebSocket
  • SMPTE 2022-7 dual-fabric builds

Built by Tridant.

Tridant is an independent creative-technology firm — three co-founders, not an agency network. It builds and runs its own systems, and delivers turnkey design, deployment, and day-two operations for projection mapping, video walls, media servers, and interactive exhibits at venues, museums, and live events. Transmission is one of those systems. The people who answer your support call are the people who wrote it.

Earlier work runs through Obscura Digital — the studio behind architectural-scale projection at the Vatican and the exterior of the MSG Sphere — and Downstream, whose experience environments anchor major sports venues and tech flagships, for Apple, Google, Tesla, Netflix, NASA JPL, and MLB. Transmission applies that work to ST 2110 routing.

  • Bryant Place

    Co-Founder · CEO

  • Dylan Roscover

    Co-Founder · CTO

  • Davor Bagarić

    Co-Founder · CPO

tridant.io

Portland, OR · Idyllwild, CA · Zagreb, HR

  • Portland, OR
  • Idyllwild, CA
  • Zagreb, HR

See Transmission IRL

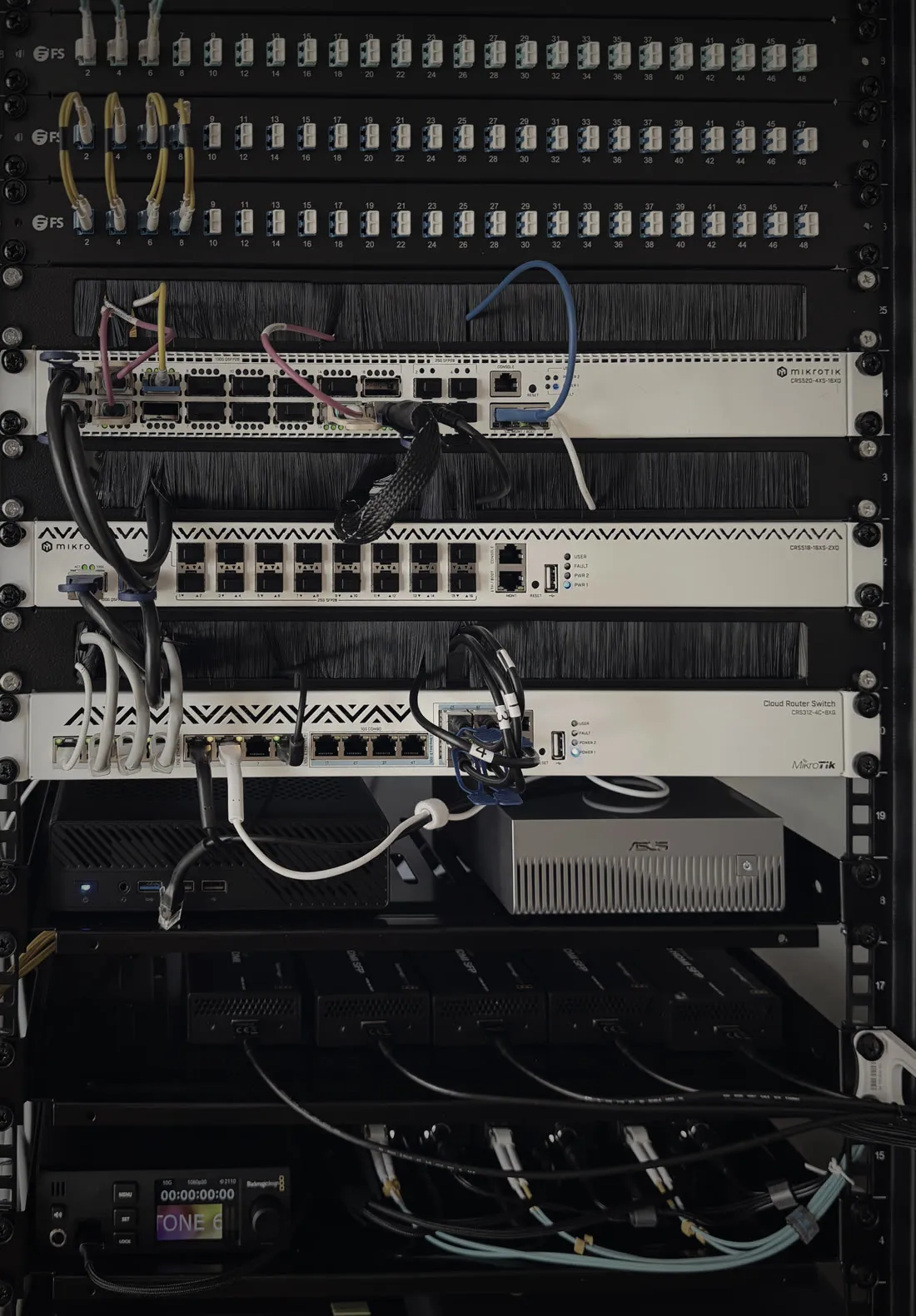

Two ways to get hands on it. The reference rack lives in our Zagreb studio and runs continuously. In Los Angeles we bring the 6RU demo kit to your facility — it travels in its own rack, powered and routing live signals, with the people who built it in the room.

  • Zagreb studio

    Zagreb, Croatia

    Reference rack · permanent

    The full system, racked and running on real signal paths — switch fabric, converters, PTP grandmaster, and the control plane. Route anything on the matrix yourself.

  • Los Angeles

    On site, at your facility

    6RU travel rack · portable

    The demo kit lives in a portable 6RU travel rack. We roll it in, power it up, and route live signals in the room — with the people who built it there to answer whatever you want to ask.

BOOK AN IN-PERSON DEMO → REQUEST A REMOTE DEMO

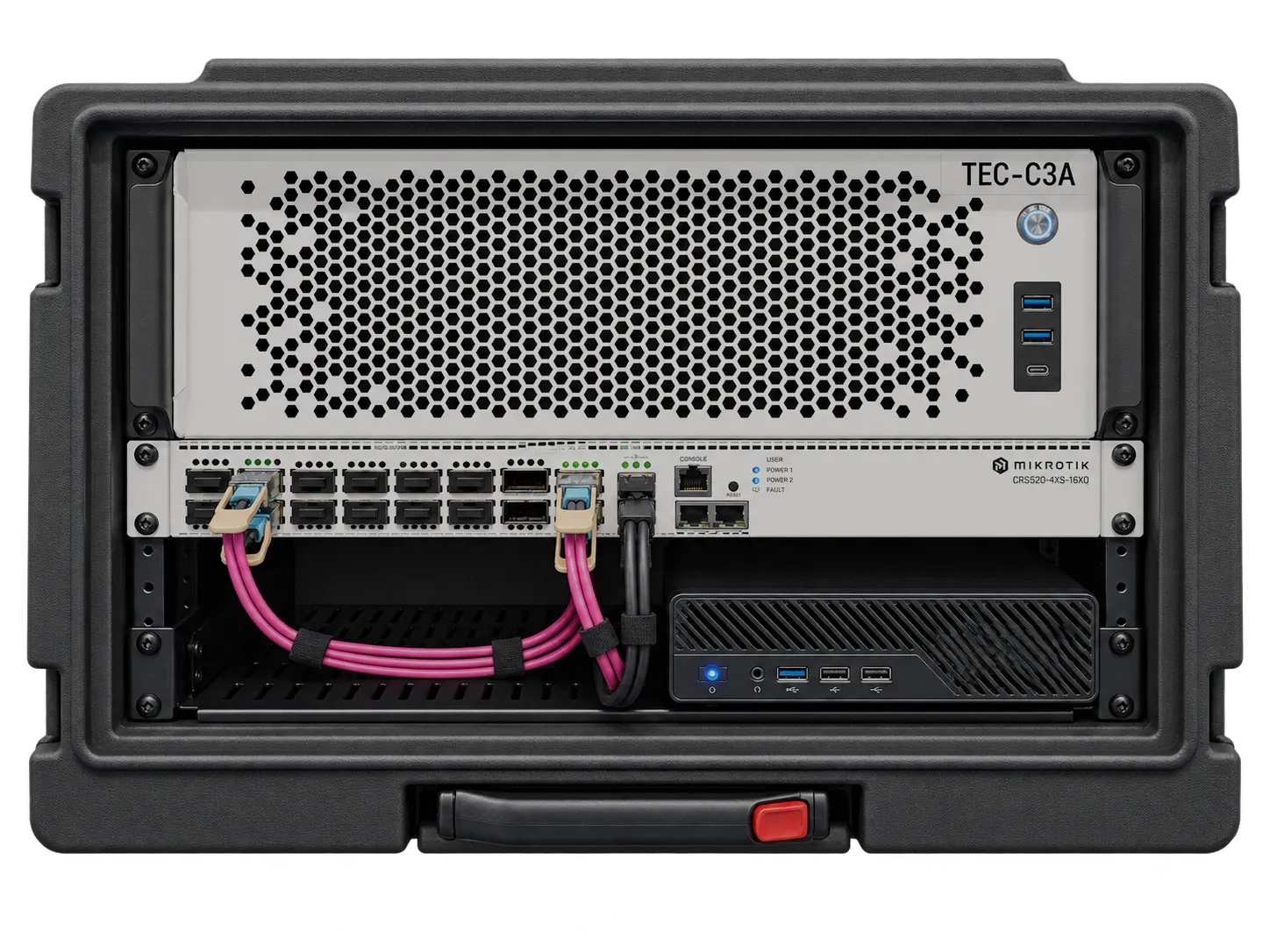

The 6RU travel rack — TEC-C3A media server over a MikroTik CRS520-4XS-16XQ, cabled and cased.
